nVidia GeForce 8500 GT (G86)
Specification nVidia graphics cards Benchmark points |
|---|
| 1606 |

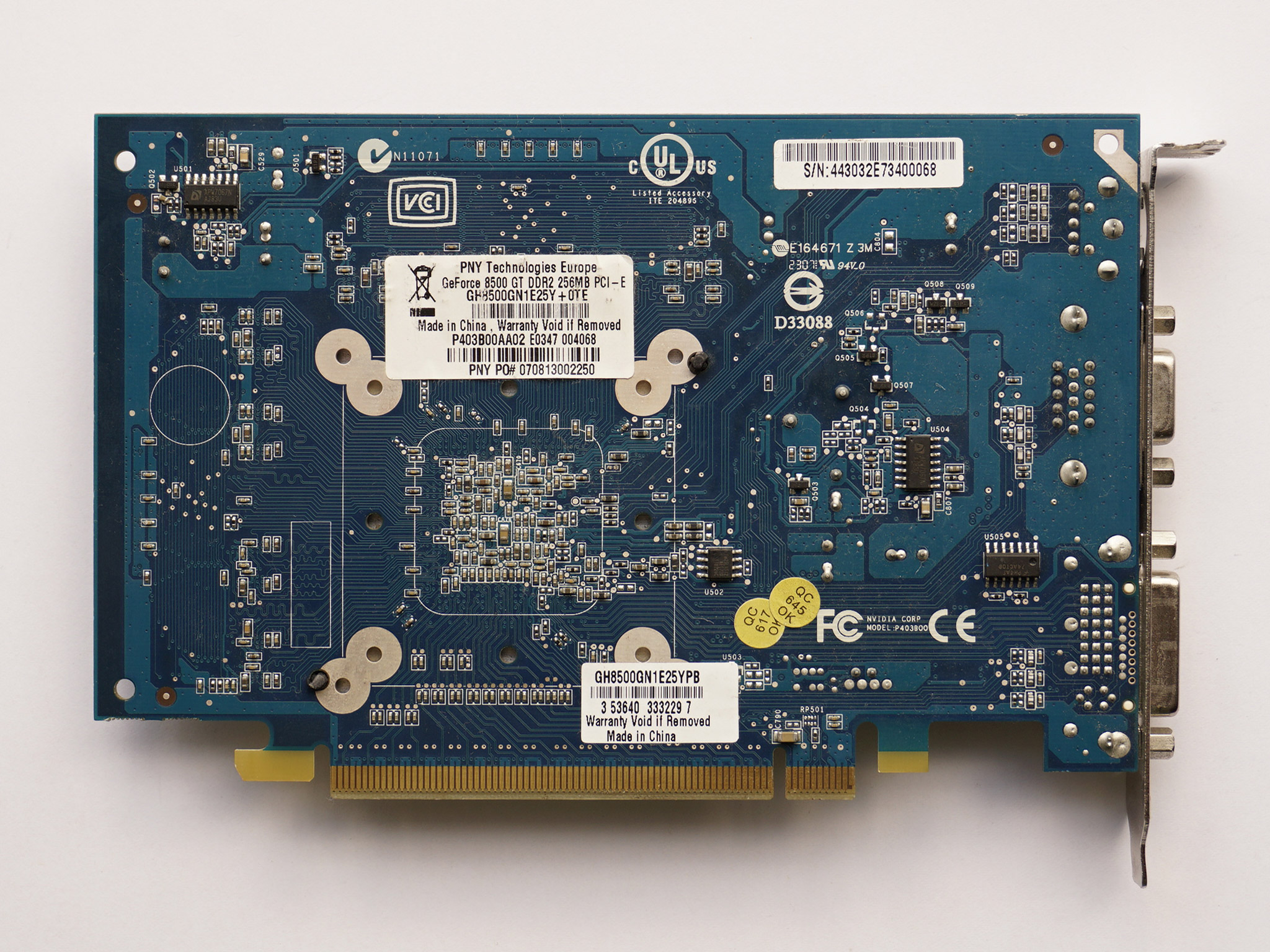

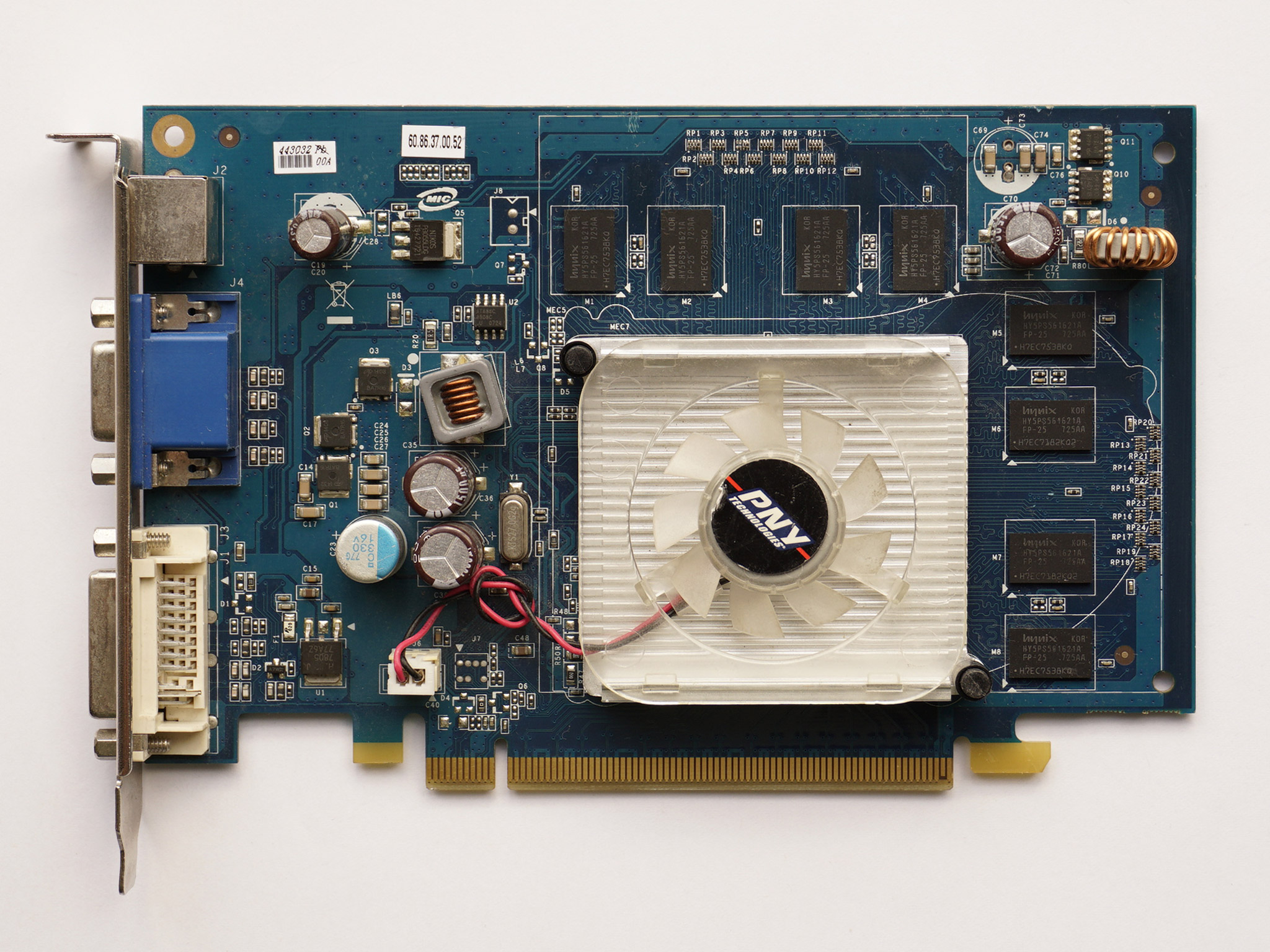

PNY GeForce 8500 GT PCIe x16 256 Mb

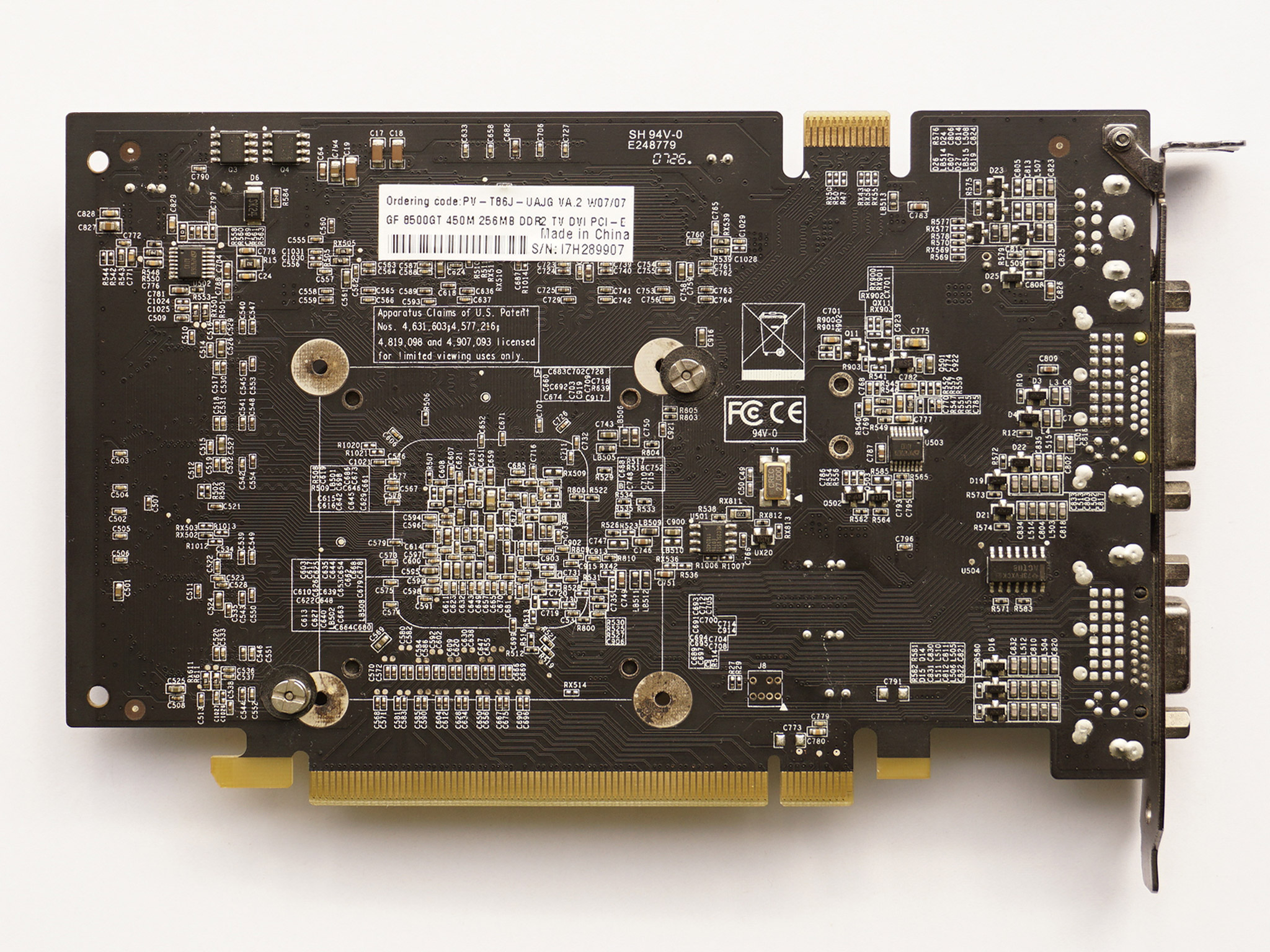

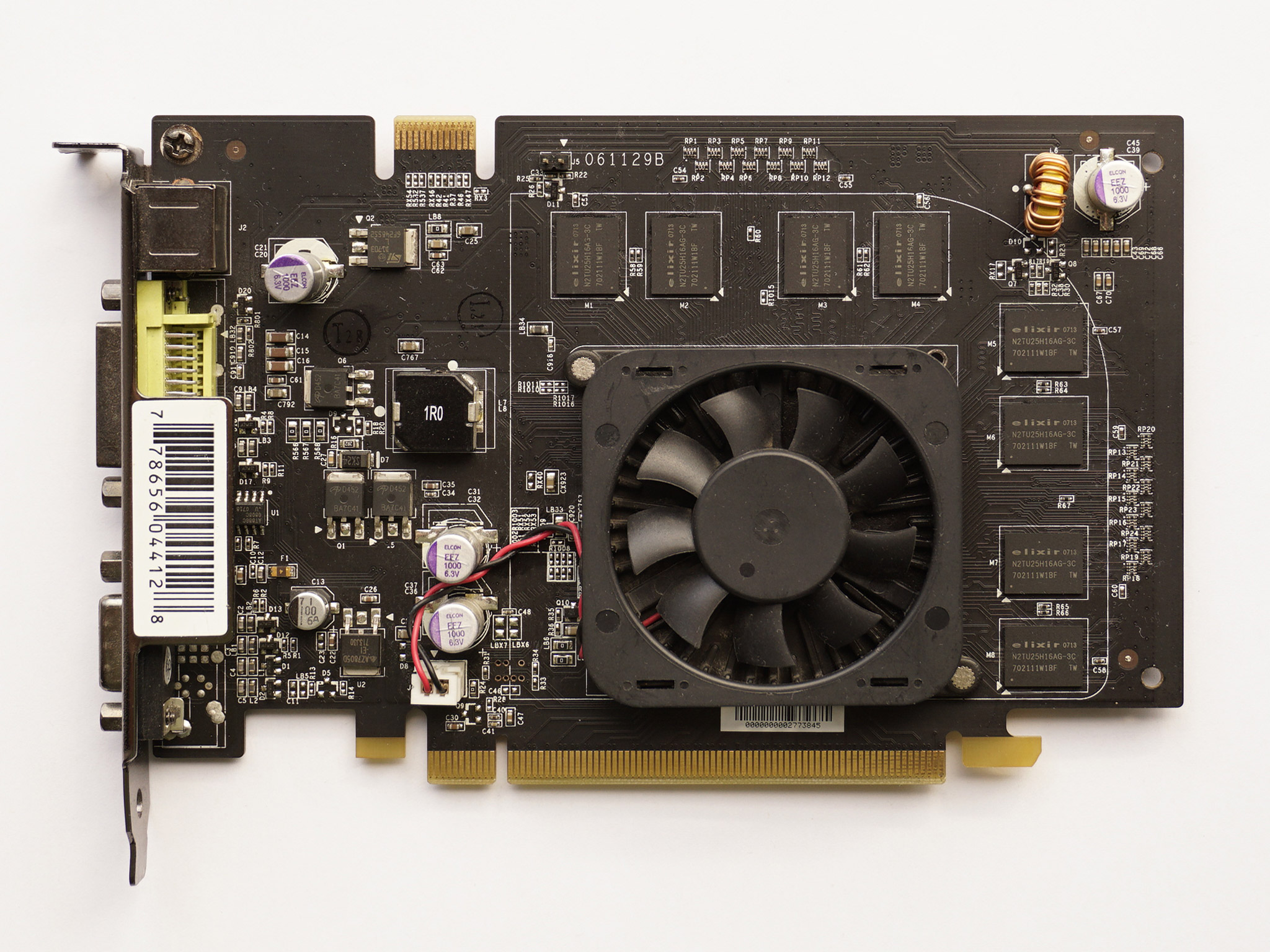

XFX GeForce 8500 GT PCIe x16 256 Mb
| Manufacturer | Slot | GPU | Transistors | Memory | DirectX | OpenGL | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TDP Watts |
GPU Clock | Shader Clock | ROPs/TMUs /Shaders |
Fillrate | Millions | µm | Mhz | Mb | ns | Type | bit | Bandwith | ||||
| PNY GeForce 8500 GT | PCIe | 45 | 459 | 918 | 8/8/16 | 3672 | 210 | .08 | 400 | 256 | 25 | DDR2 | 128 | 12800 | 10.0 | 3.3 |
| XFX GeForce 8500 GT | 333 | 3 | 10656 | |||||||||||||
nVidia GeForce 8500 GT benchmark results (XP Driver 335.04)
| CrystalMark09 | Quake3 Demo | 3DMark 2000 | 3DMark 2001SE | SeriousSam FE | Aquamark3 | Chameleonmark | ||
| GDI | D2D | DirectX | OpenGL | |||||
| 10167 | 4491 | 526.2 | 17499 | 18369 | 181.6 | 318.9 | 62546 | 194.03 |
