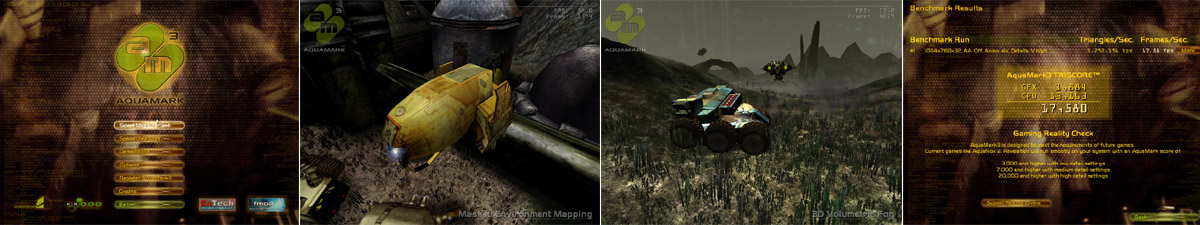

Aquamark3

Aquamark3

Aquamark3 is excellent DirectX 8.0 benchmark which measures more advanced 3D capabilites based on shaders.
This benchmark counts how many seconds VGA needs for processing fixed number of frames (5300 frames in 11 tests)


Note:

- if crash with ATI cards you need to
erase file in root folder
Configuration 1
CPU C2D E6600 2.40/4/1066
Motherboard Asrock 4CoreDual-VSTA S775
RAM 2x1024 Mb DDR2 667 DC
Hdd Sata SSD Patriot 120 Gb
OS Win XP Pro SP3
Software Aquamark3


Referent card is Matrox Parhelia OEM 128 Mb AGP 4x
Model Slot1 Mb Aquamark3 Result2

3Dlabs Wildcat VP560 4x 64
Wildcat VP760 64
Wildcat VP970 128
ATI Radeon 8500 LE 4x 64 19144 99.76
Radeon 9000 64 12712 66.24
Radeon 9000 Pro 64 14150 73.73
Radeon 9100 64 18267 95.19
Radeon 9200 SE 8x 128 9182 47.84
Radeon 9200 128 12647 65.90
Radeon 9250 SE 128 10127 52.77
Radeon 9250 128 12324 64.22
Radeon 9500 128 23735 123.68
Radeon 9500 Pro 128 34462 179.58
Radeon 9550 SE 128 15516 80.85
Radeon 9550 128 18626 97.06
Radeon 9600 SE 128 18128 94.46
Radeon 9600 128 21634 112.73
Radeon 9600 Pro 128 29255 152.44
Radeon 9600 XT 128 34081 177.59
Radeon 9700 TX 128 36285 189.08
Radeon 9800 SE 128 128 26264 136.86
Radeon 9800 Pro 128 128 38876 202.58
Radeon 9800 Pro 256 128 50669 264.03
Radeon X300 SE PCIe 128 17582 91.62
Radeon X300 HM 128 17568 91.54
Radeon X550 128 27384 142.69
Radeon X600 256 23688 123.43
Radeon X600 Pro 256 28332 147.63
Radeon X700 SE 128 33869 176.49
Radeon X700 128 45088 234.95
Radeon X700 Pro 128 55320 288.27
Radeon X800 GT 256 256 66971 348.98
Radeon X800 GTO 256 8x 256 70707 368.45
Radeon X800 Pro 256 78337 408.21
Radeon X800 XL PCIe 256 48992 255.29
Radeon X850 XT 256 82855 431.76
Radeon X1300 256 32664 170.21
Radeon X1550 8x 128 24478 127.55
Radeon X1600 Pro 256 49057 255.63
Radeon X1600 XT PCIe 256 57825 301.32
Radeon X1650 256 47491 247.47
Radeon X1650 Pro 8x 512 52745 274.85
Radeon X1900 XTX PCIe 512 101816 530.56
Radeon X1950 Pro 256 93819 488.89

1 AGP= 4x, 8x
2 Result is comparison with referent card

Model Slot1 Mb Aquamark3 Result2

Matrox Parhelia OEM 4x 128 19190 100.00
Parhelia Retail 20717 107.95
P650 8x 64 8809 45.90
P750 64 10611 55.29
Parhelia 128 128 22329 116.35
Parhelia 256 256 22958 119.63
Parhelia APVe PCIe 128 10199 53.14
P650 LP PCIe x16 128 6298 32.81
M9140 512 12445 64.85
nVidia GF3 Ti200 4x 64 10020 52.21
GF3 Ti500 64 13759 71.69
GF4 Ti4200 4x 128 15868 82.68
GF4 Ti4600 128 19485 101.53
GF4 Ti4200 8x 8x 128 16276 84.81
GF4 Ti4800SE 128 17840 92.96
GF FX5200 LE 128 8113 42.27
GF FX5200 256 8657 45.11
GF FX5200 Ultra 128 12253 63.85
GF FX5500 128 9084 47.33
GF FX5600 256 17056 88.87
GF FX5600 Ultra2 128 23939 124.74
GF FX5700 128 25305 131.86
GF FX5700 Ultra 128 30375 158.28
GF FX5750 PCIe 128 24687 128.64
GF FX5900 XT 8x 128 39484 205.75
GF FX5900 128 39930 208.07
GF 6200A 128 22867 119.16
GF 6200 128 26799 139.65
GF 6200 TC PCIe 16 11904 62.03
GF 6500 256 17759 92.54
GF 6600 128 38203 199.07
GF 6600 GT 128 62405 325.19
GF 6800 8x 128 60229 313.85
GF 6800 GS PCIe 512 85251 444.24
GF 7300 LE 256 25727 134.06
GF 7300 GS 256 26041 135.70
GF 7300 GT 256 50165 261.41
GF 7600 GS 256 92491 481.97
GF 7600 GT 256 90728 472.78
GF 7800 GT 256 103045 536.97
GF 7900 GT 256 106810 556.59
SiS Xabre 200 8x 32 8046 41.92
Xabre 400 64 12354 64.37
Xabre 600 64 14092 73.43
