ATI Radeon X1600 Pro (RV530)
Specification ATI graphics cards Benchmark points |
|---|
| 1657 |

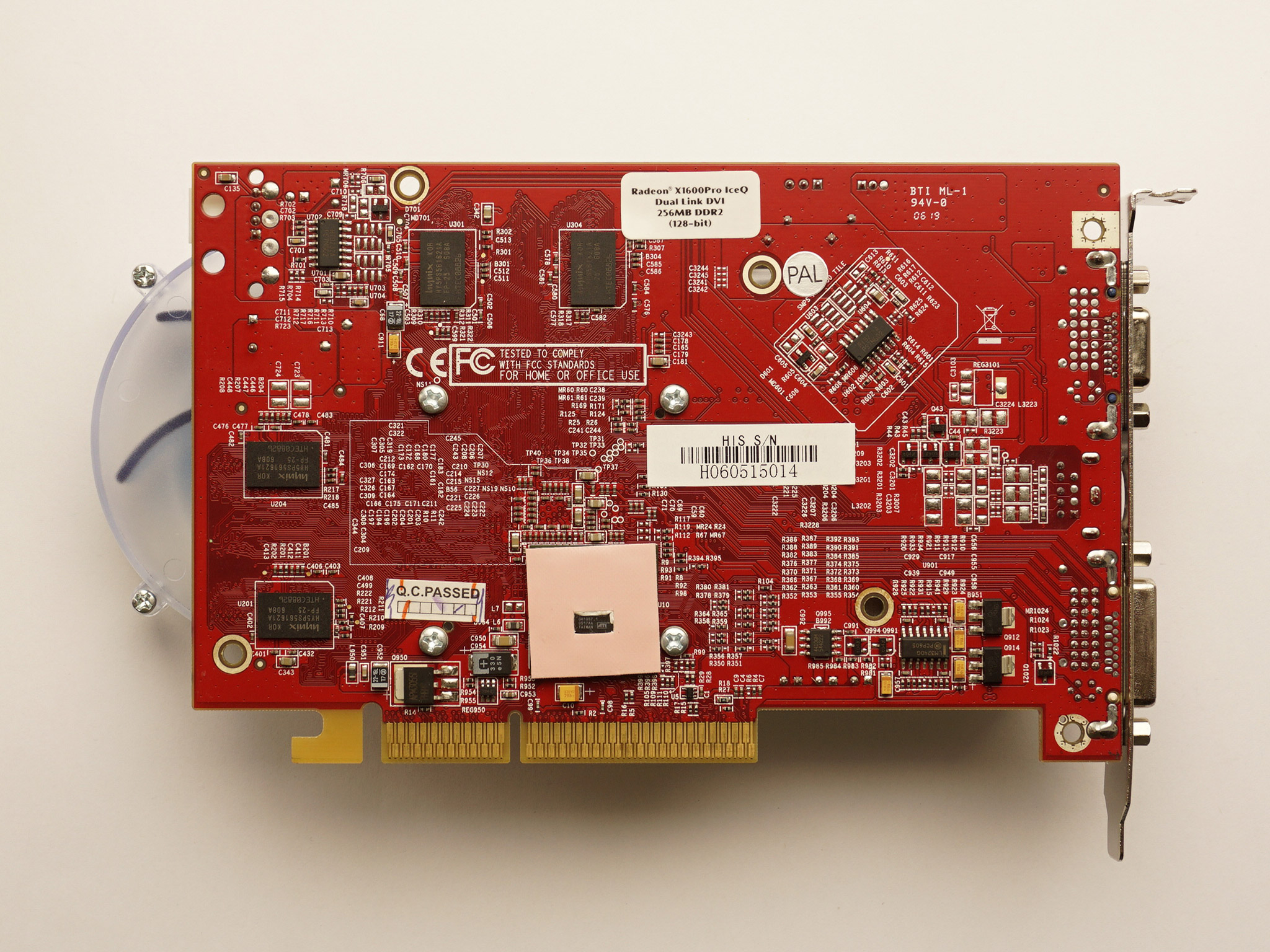

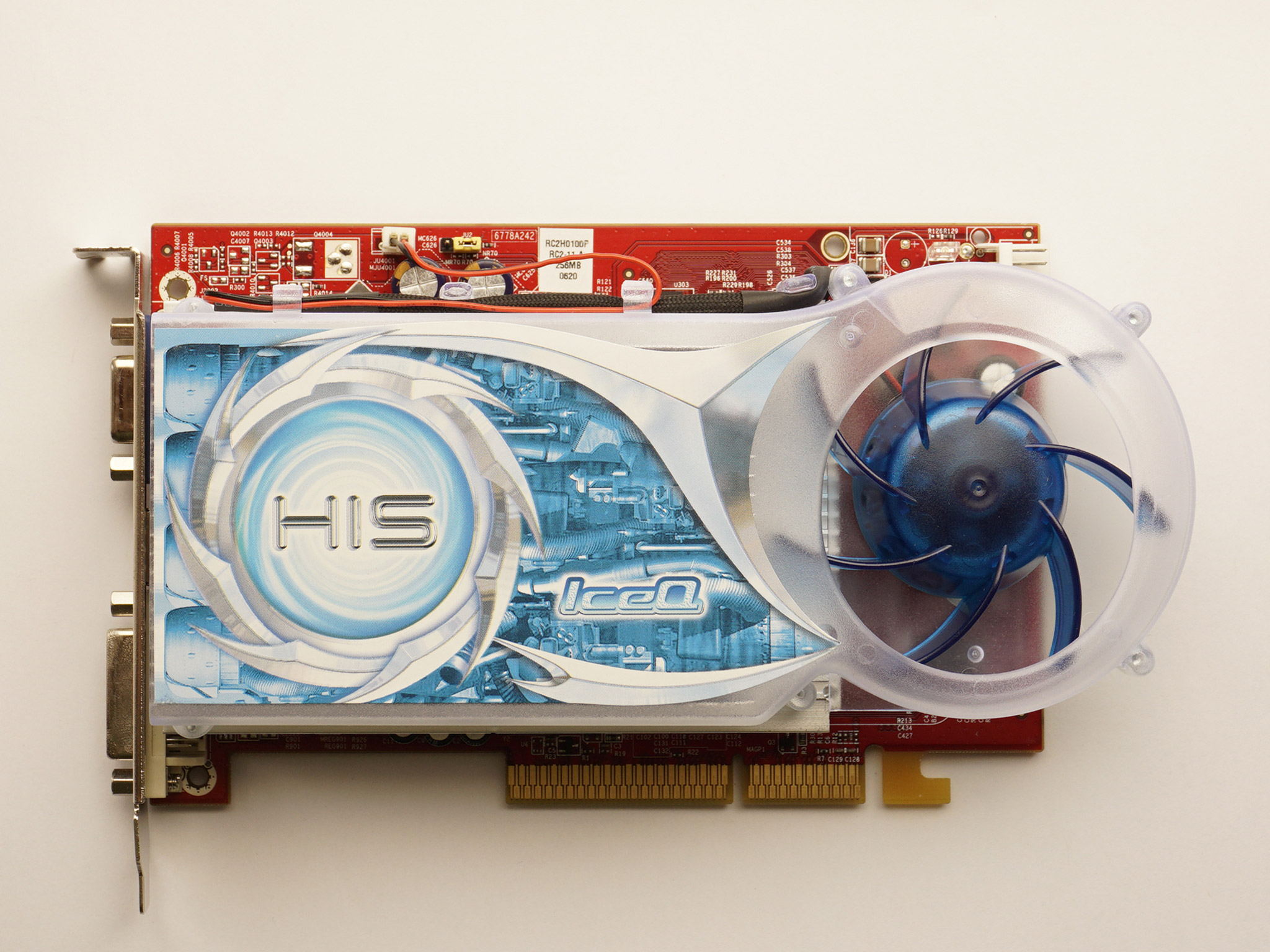

HIS Radeon X1600 Pro 8x 256 Mb

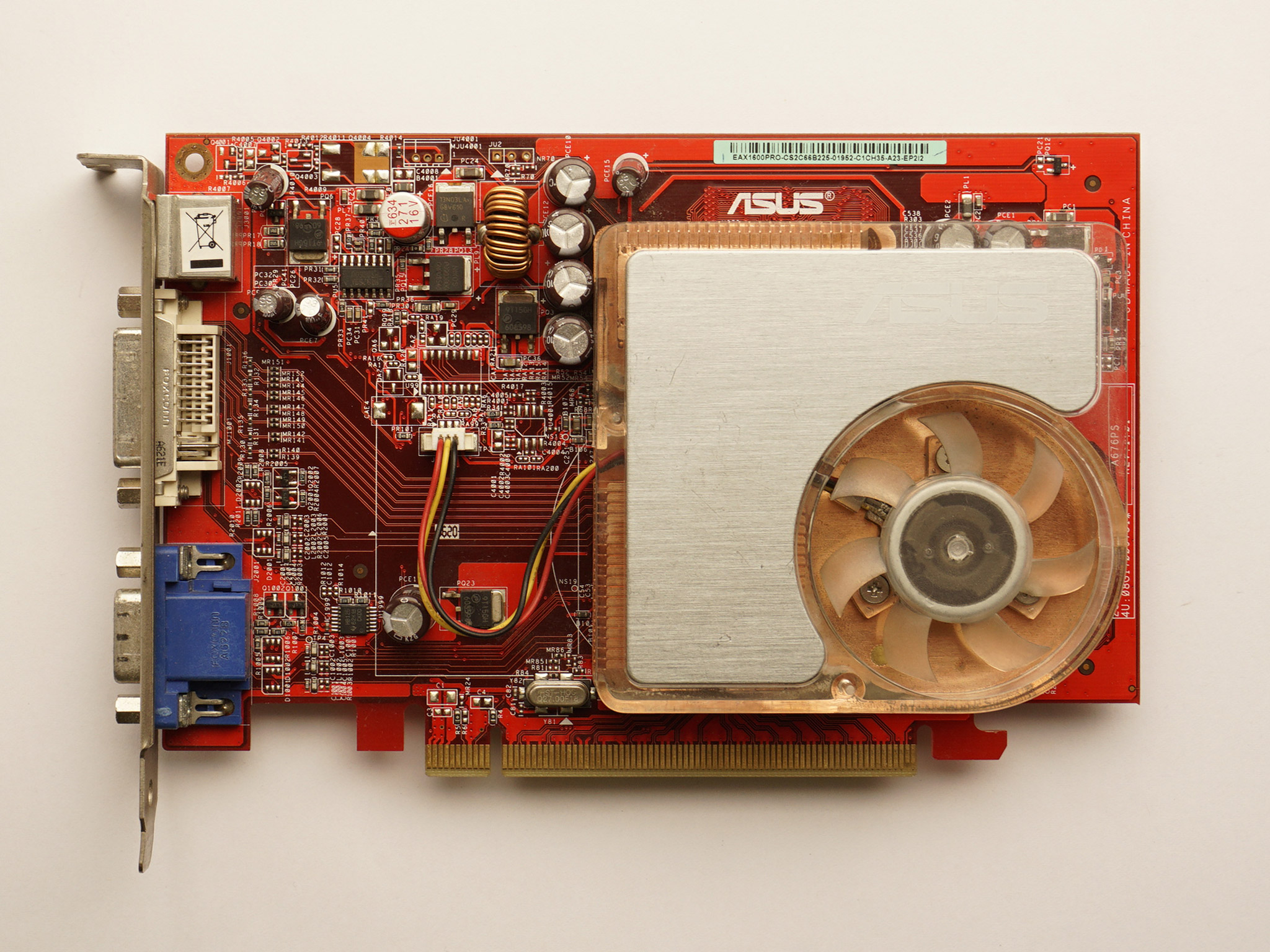

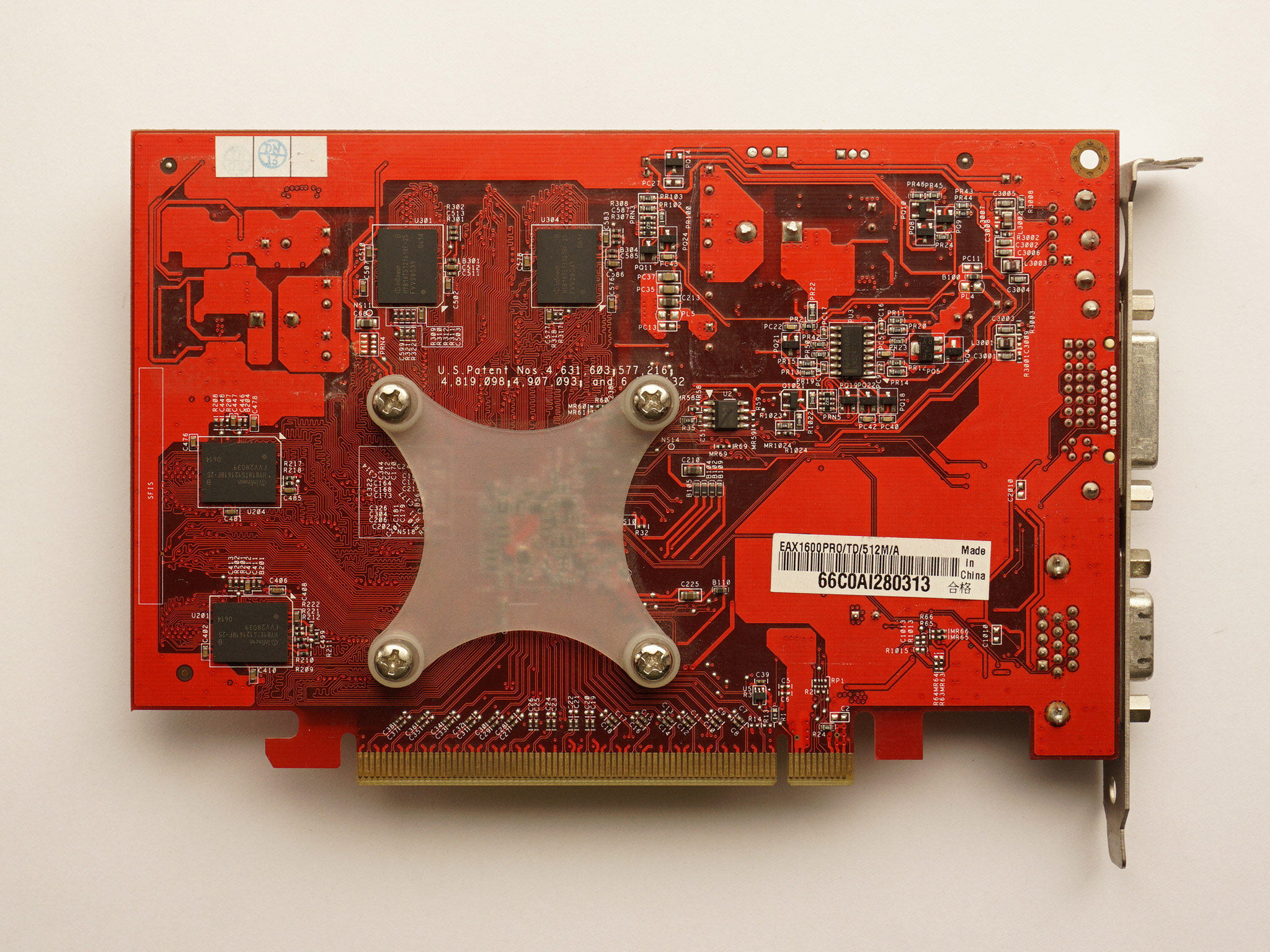

Asus Radeon X1600 Pro x16 512 Mb
| Manufacturer | Ramdac | Slot | GPU | Transistors | Memory | DirectX | OpenGL | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mhz | Pipes | Fillrate | Millions | µm | Mhz | Mb | ns | Type | bit | Bandwith | |||||
| HIS Radeon X1600 Pro | 400 | AGP 8x | 500 | 12x1x5 | 6000 | 157 | .09 | 396 | 256 | 25 | DDR2 | 128 | 12672 | 9.0c | 2.1 |
| Asus Radeon X1600 Pro | PCIe | 512 | |||||||||||||
HIS Radeon X1600 Pro benchmark results (XP Driver 10.2)
| Model | CrystalMark09 | Quake3 Demo | 3DMark 2000 | 3DMark 2001SE | SeriousSam FE | Aquamark3 | Chameleonmark | ||
|---|---|---|---|---|---|---|---|---|---|
| GDI | D2D | DirectX | OpenGL | ||||||
| HIS Radeon X1600 Pro | 10893 | 6290 | 682.2 | 21525 | 21063 | 120.5 | 285.6 | 49057 | 212.37 |
