nVidia GeForce 8600 GT (G84)
Specification nVidia graphics cards Benchmark points |
|---|
| 2813 |

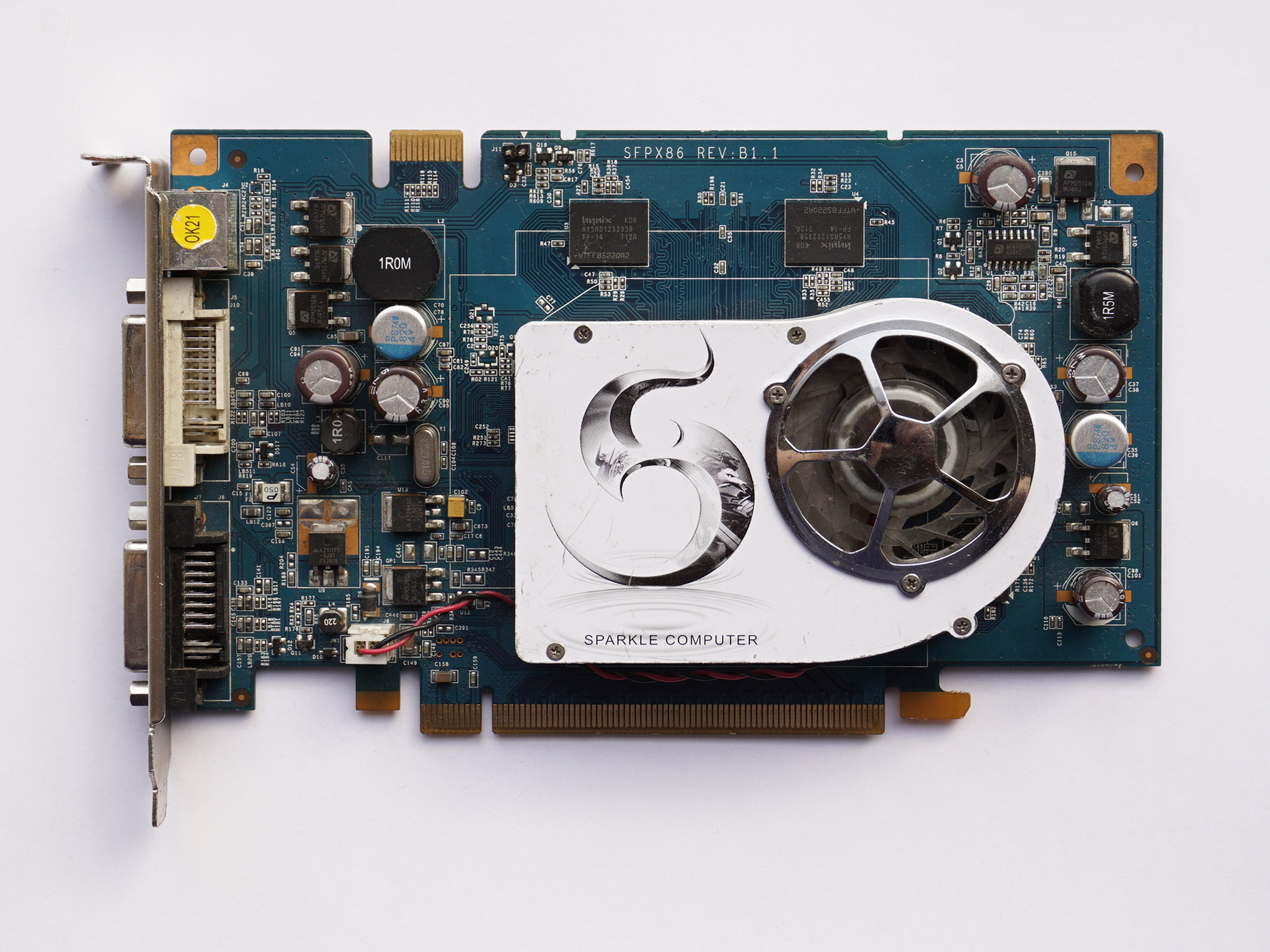

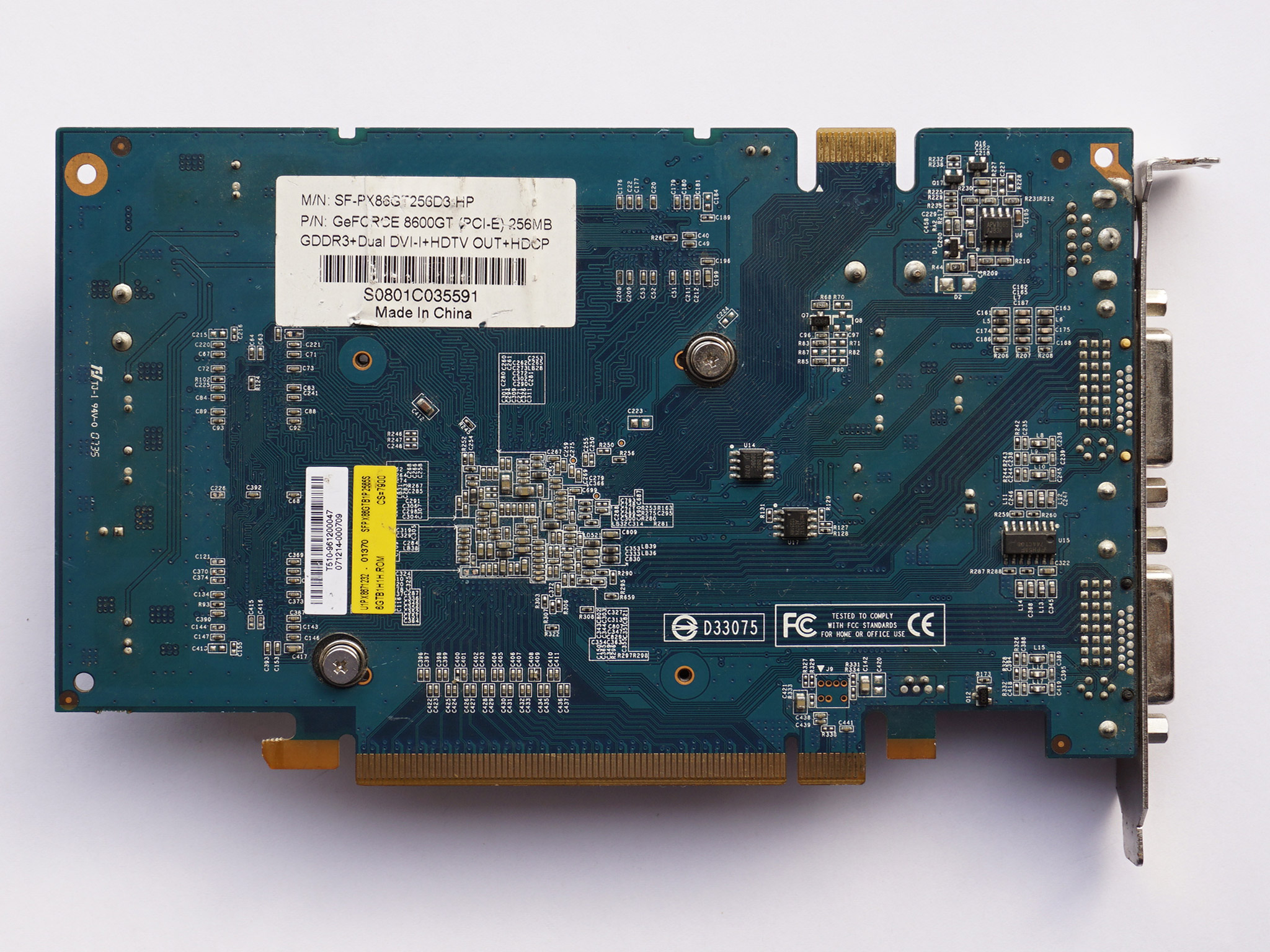

Sparkle GeForce 8600 GT PCIe x16 256 Mb
| Manufacturer | Slot | GPU | Transistors | Memory | DirectX | OpenGL | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TDP Watts |
GPU Clock | Shader Clock | ROPs/TMUs /Shaders |
Fillrate | Millions | µm | Mhz | Mb | ns | Type | bit | Bandwith | ||||
| Sparkle GF 8600 GT | PCIe | 47 | 540 | 1188 | 8/16/32 | 8640 | 289 | .08 | 702 | 256 | 14 | DDR3 | 128 | 22464 | 10.0 | 3.3 |
nVidia GeForce 8600 GT benchmark results (XP Driver 335.04)
| CrystalMark09 | Quake3 Demo | 3DMark 2000 | 3DMark 2001SE | SeriousSam FE | Aquamark3 | Chameleonmark | ||
| GDI | D2D | DirectX | OpenGL | |||||
| 10037 | 6250 | 597.7 | 22611 | 32243 | 182.0 | 357.6 | 107084 | 491.98 |
