nVidia GeForce 8600 GTS (G84)
Specification nVidia graphics cards Benchmark points |
|---|
| 3185 |

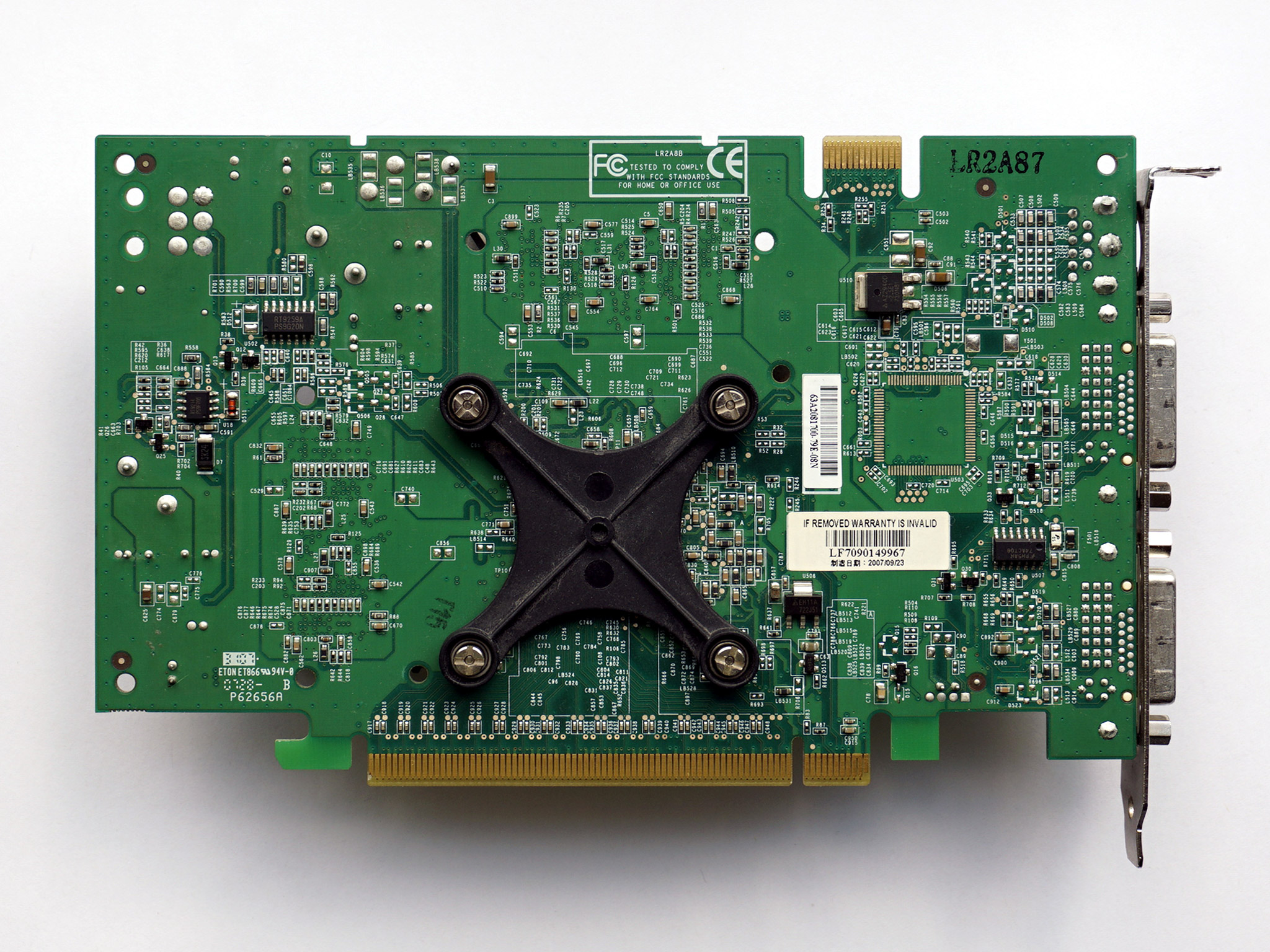

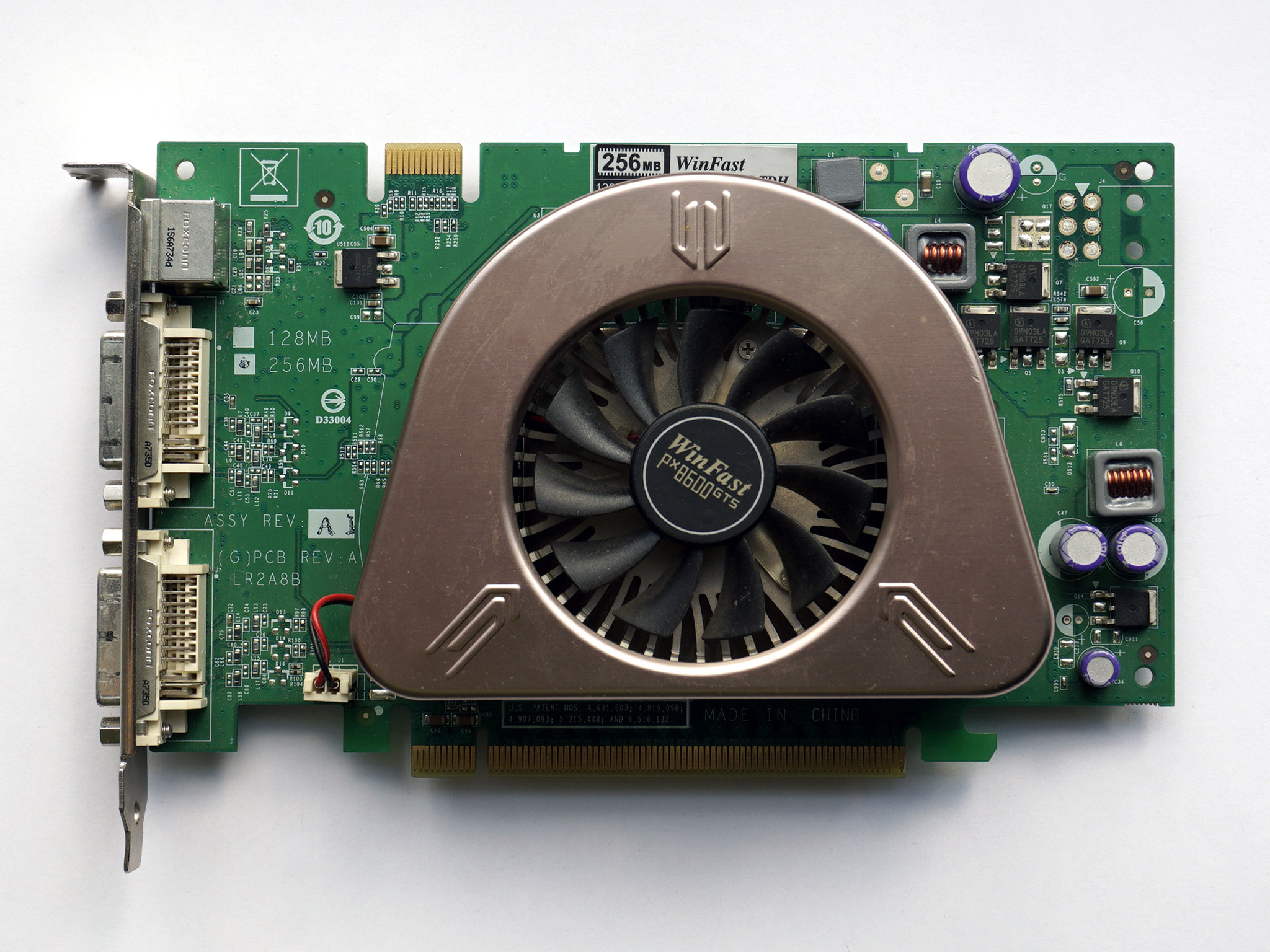

Leadtek GeForce 8600 GTS PCIe x16 256 Mb
| Manufacturer | Slot | GPU | Transistors | Memory | DirectX | OpenGL | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TDP Watts |
GPU Clock | Shader Clock | ROPs/TMUs /Shaders |
Fillrate | Millions | µm | Mhz | Mb | ns | Type | bit | Bandwith | ||||
| Leadtek GF 8600 GTS | PCIe | 75 | 675 | 1458 | 8/16/32 | 10800 | 289 | .08 | 1000 | 256 | 10 | DDR3 | 128 | 32000 | 10.0 | 3.3 |
nVidia GeForce 8600 GTS benchmark results (XP Driver 335.04)
| CrystalMark09 | Quake3 Demo | 3DMark 2000 | 3DMark 2001SE | SeriousSam FE | Aquamark3 | Chameleonmark | ||
| GDI | D2D | DirectX | OpenGL | |||||
| 10180 | 7785 | 602.0 | 22750 | 35102 | 335.6 | 359.6 | 113195 | 606.69 |
